Description

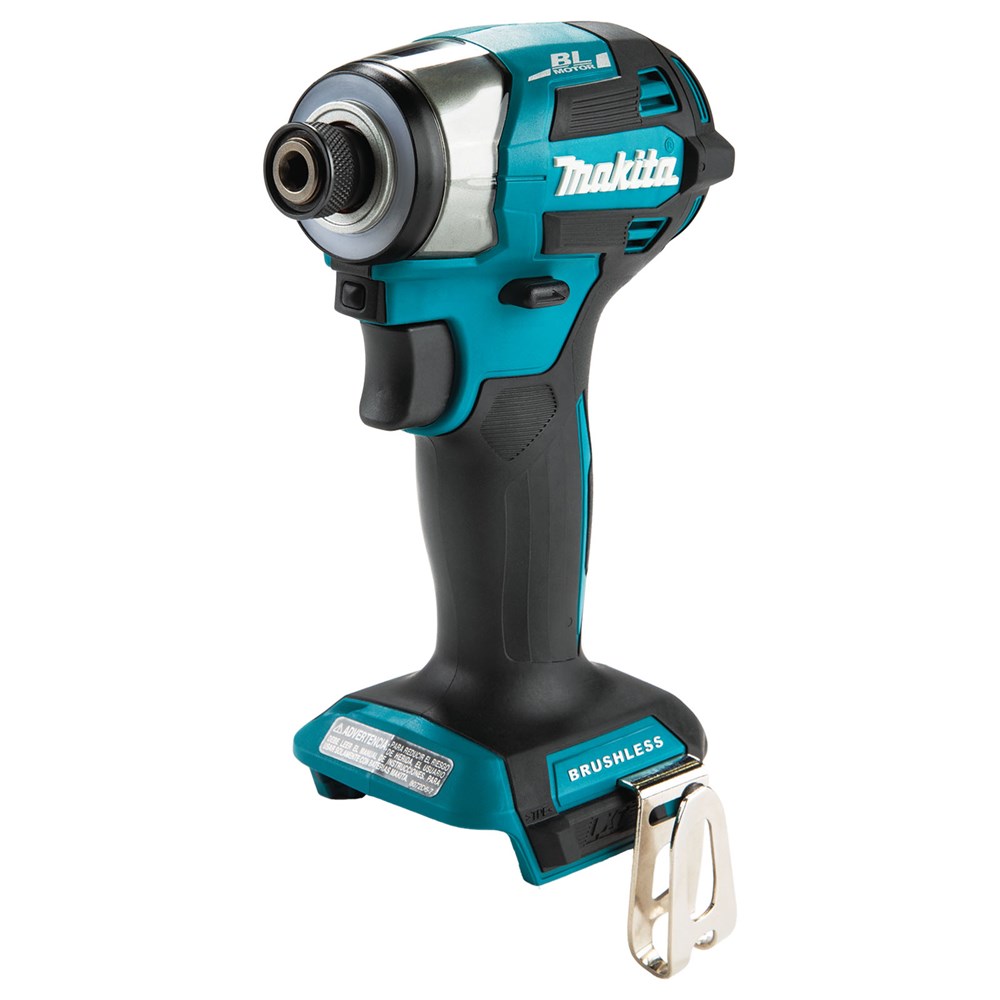

Makita DTD173Z 18v LXT Cordless Brushless Impact Driver Body Only

The Makita DTD173Z 18v Cordless Brushless Impact Driver is an ultra-compact, lightweight tool designed for efficient fastening work. At just 111mm long, it offers excellent balance and ease of use. Its brushless motor provides a maximum torque of 180 Nm, with a no-load speed up to 3,600 RPM and up to 3,800 impacts per minute, making it suitable for a wide range of applications. It features adjustable impact modes and a new working light with three brightness settings for improved visibility.

Sold body only. Batteries and chargers available separately.

FEATURES

• Slim body design for a good grip
• Anti-bit wobbling structure; Two ball bearings are used to securely hold the anvil for reduced bit wobbling
• Electric brake for increased productivity and operator safety

SPECIFICATION

• Nominal Battery Voltage: 18v
• Battery Chemistry (Ni-Cd / Ni-MH / Li-ion): Li-ion
• Motor: Brushless
• No Load Speed: 0 – 1100 / 2100 / 3200 / 3600 min⁻¹
• Max Fastening Torque Impact Drill: 20 / 50 / 170 / 180 Nm
• Impacts per Minute (IPM): 0 – 1100 / 2600 / 3600 / 3800 min⁻¹
• Tightening Capacity Standard Bolt: M5 – M16
• Capacity Machine Screw: M4 – M8
• Tightening Capacity High Tensile Bolt: M5 – M14
• Driving Shank: 1/4 “
• Tool Weight With Battery: 1,2 – 1,5 kg
• Product Net Weight: 0.85 kg

NOISE & VIBRATION

• Sound Power Level (LWA): 108 dB(A)
• Sound Pressure Level (LpA): 97 dB(A)
• Noise Uncertainty (K Factor): 3 dB(A)
• Vibration Uncertainty (K Factor), Impact Tightening of Fasteners of the Maximum Capacity of the Tool: 1,5 m/s²
• Product Dimensions (L x W x H): 111 x 81 x 234 mm
