Description

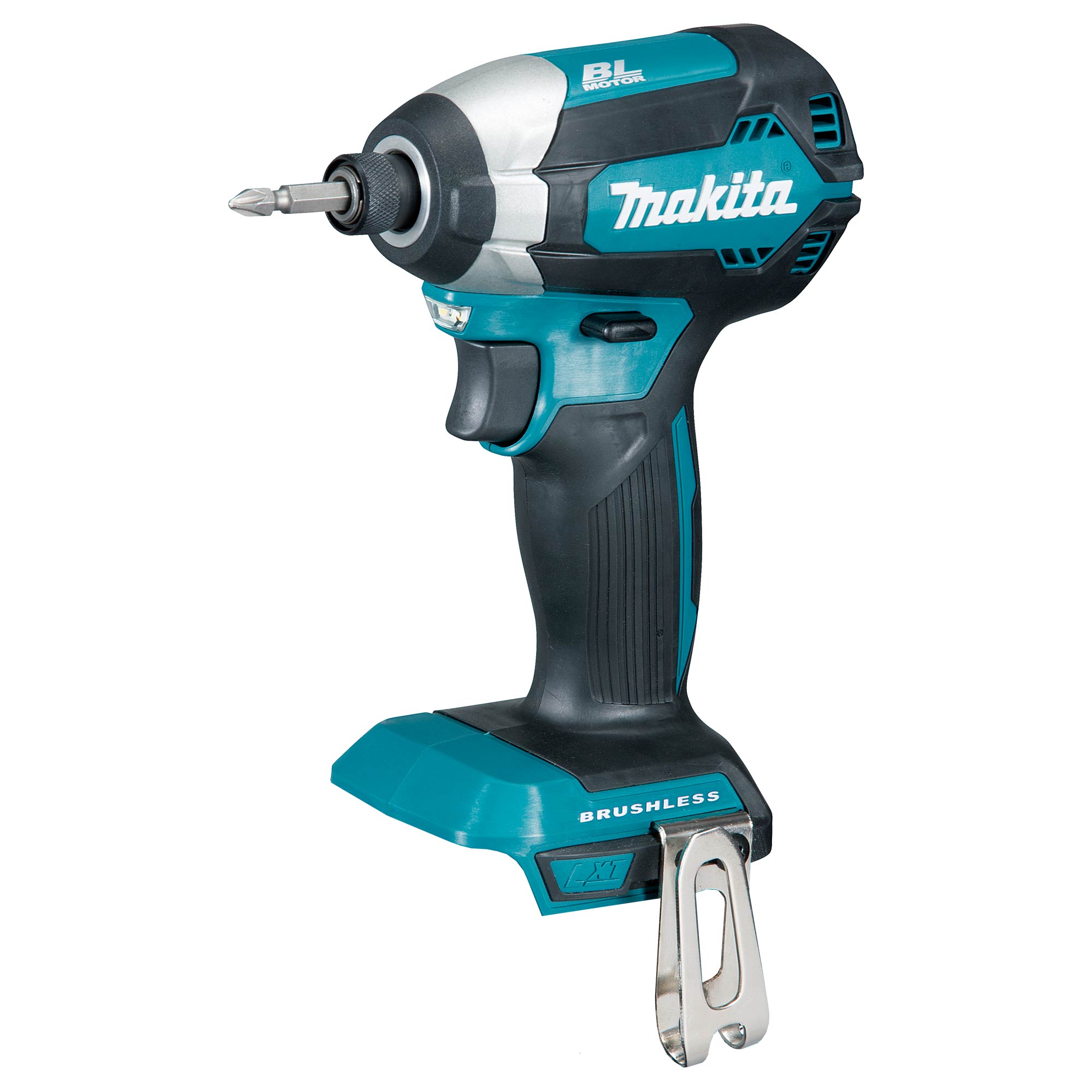

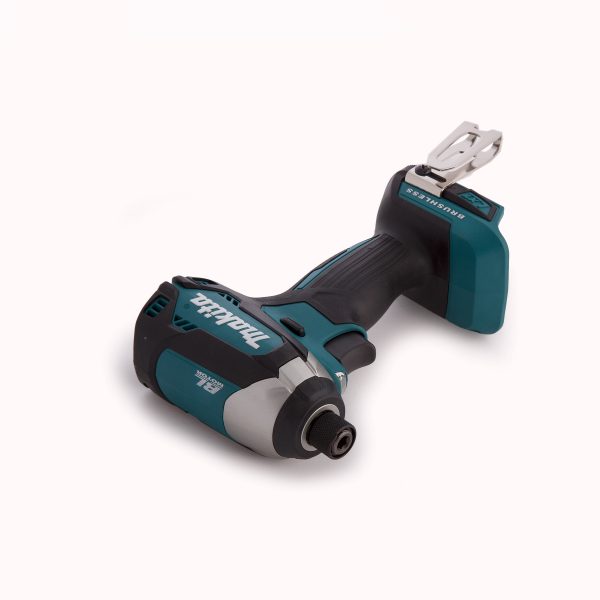

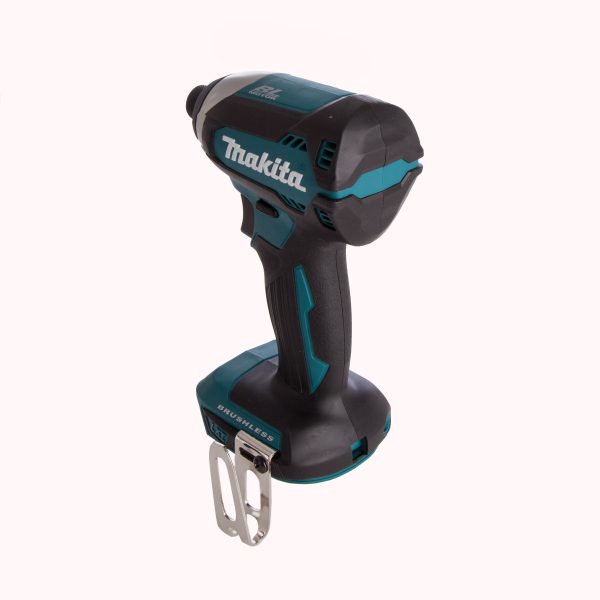

Makita DTD153Z 18V Brushless Impact Driver (Body Only)
The DTD153 cordless impact driver features high operation efficiency with a 170 Nm max torque and 4 pole brushless motor. It’s keyless single sleeve ¼” hex chuck accepts M5 – M16 standard bolts and M4 – M8 machine screws, making it ideal for repetitive screwdriving.
The DTD153 has been developed based on the DTD129 and has a no-load speed of 3,400 rpm, providing up to 3,600 impacts per minute. This high percussive action saves time and effort, driving screws up to 30% faster than a conventional drill/driver. When using high powered impact drivers, no pilot hole is needed, even into hardwood.
FEATURES
- eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
- Compact design with an overall length of only 126mm
- One touch sliding chuck for easy bit installation and removal
- Brushless DC motor with high power to weight and size ratio
- Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
- Battery protection system provides over-discharge, temperature and current protection for enhanced performance, battery cycle life and overall battery life
- LED job light with pre-glow
- Ergonomic soft rubber grip design for vibration absorption and comfortable operation
SPECIFICATION
- Voltage: 18v
- Max Torque (Nm): 170
- Brake Type: Electric
- LED Job Light: Yes / Pre-glow
- Battery Capacity Indicator: No
- Battery Compatibility: 18v Lithium-Ion (LXT)
- Rotation: Forward & Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM): 0-3400
- Machine Screw Capacity: M4-M8
- Standard Bolt Capacity: M5-M16
- High Tensile Bolt Capacity: M5-M14
- Coarse Thread Length Capacity (mm): 22-125
- Max. Impacts Per Minute (ipm): 0-3600
- Driving Shank: 1/4″ Hex
- Overall Length (mm): 126
- Net Weight (Kg with 1.5/2Ah Battery): 1.3
- Net Weight (Kg with 3/4/5Ah Battery): 1.5
- Brushless Motor: Yes
NOISE & VIBRATION
- Sound Pressure Level (LpA): 96 dB(A)
- Sound Power Level (LWA): 107 dB (A)
- Uncertainty (K): 3 dB(A)
- Vibration Emission (ah): 13.0 m/s²
- Uncertainty (K): 1.5 m/s²
- 1x DTD153Z Impact Driver Body Only
- 1x Belt Clip
