Description

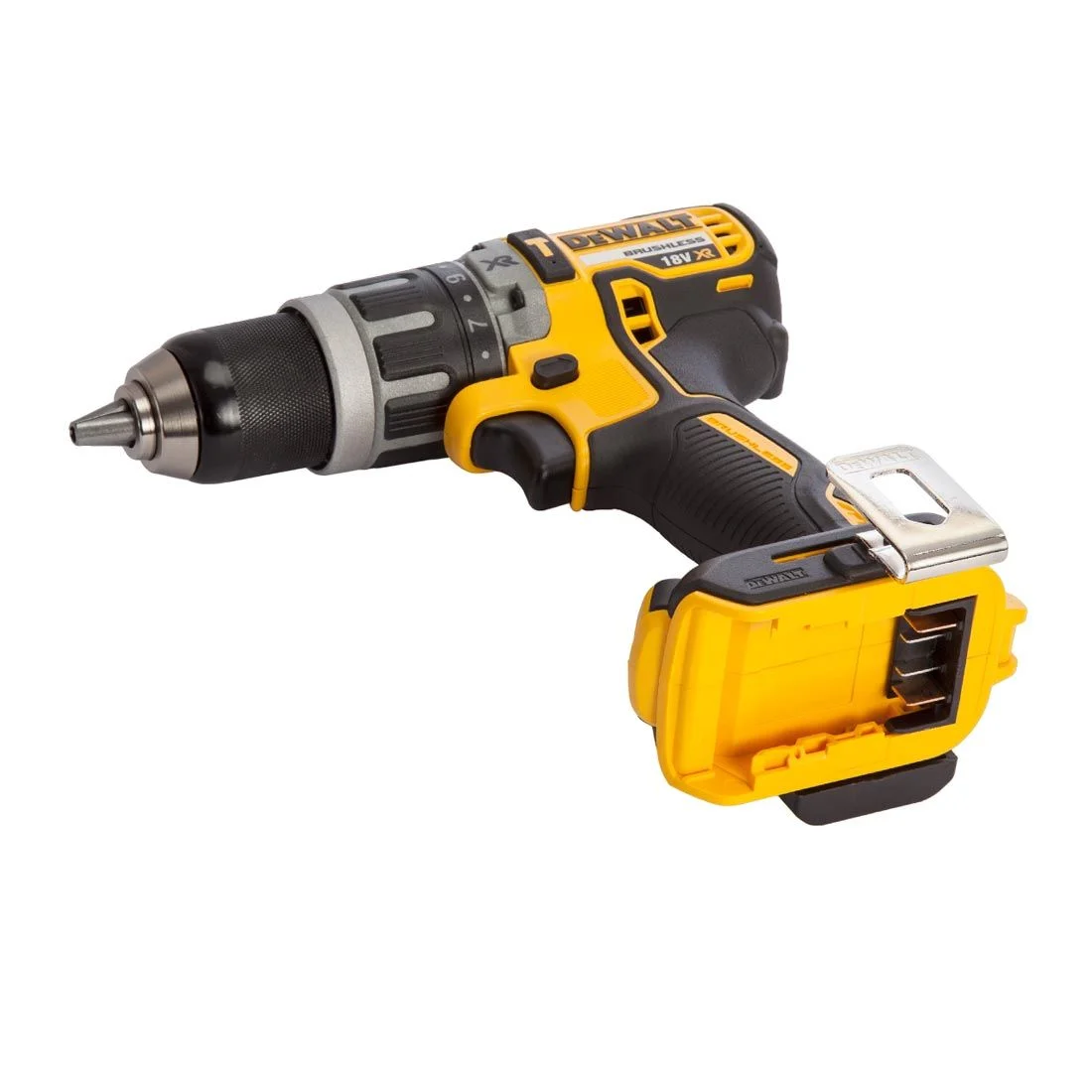

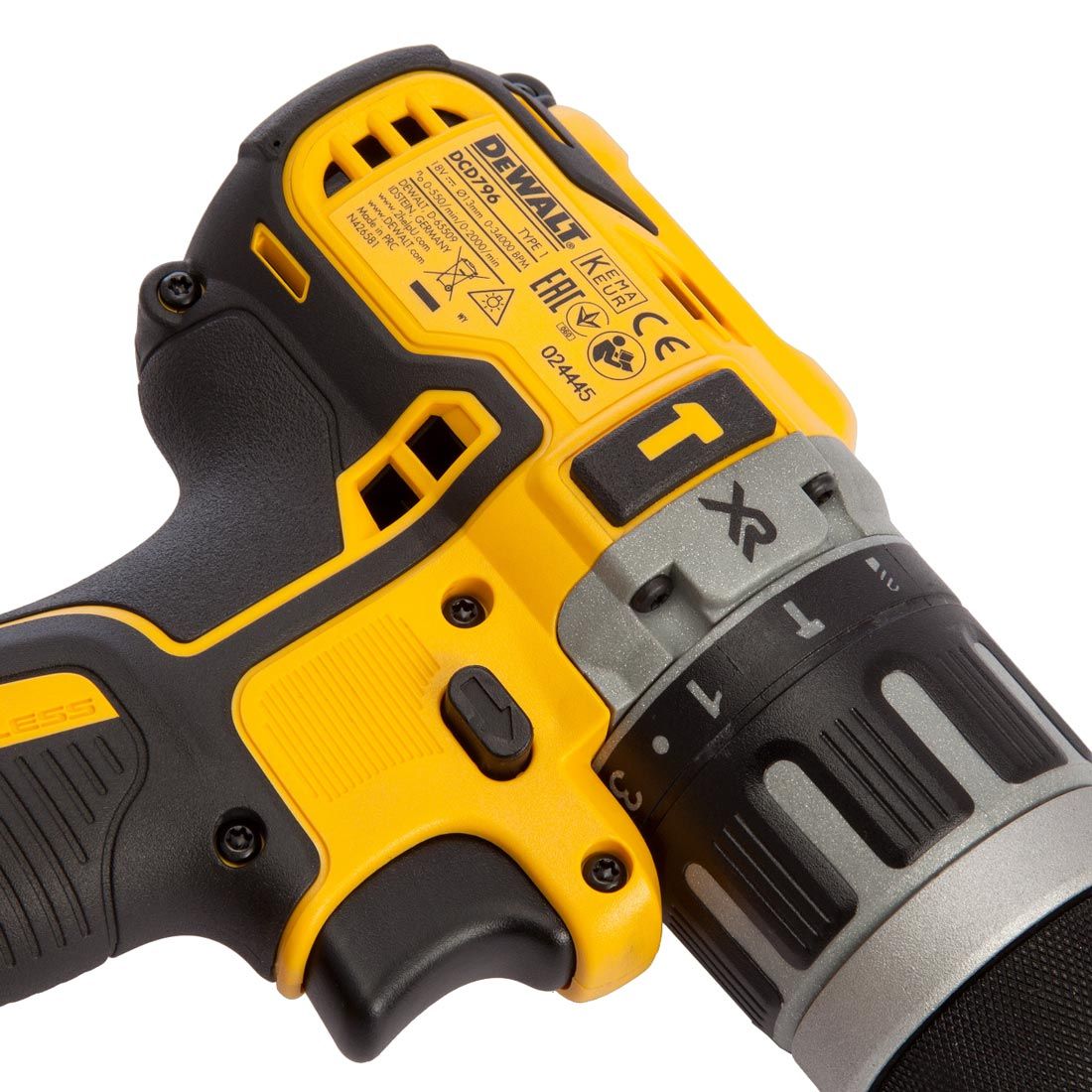

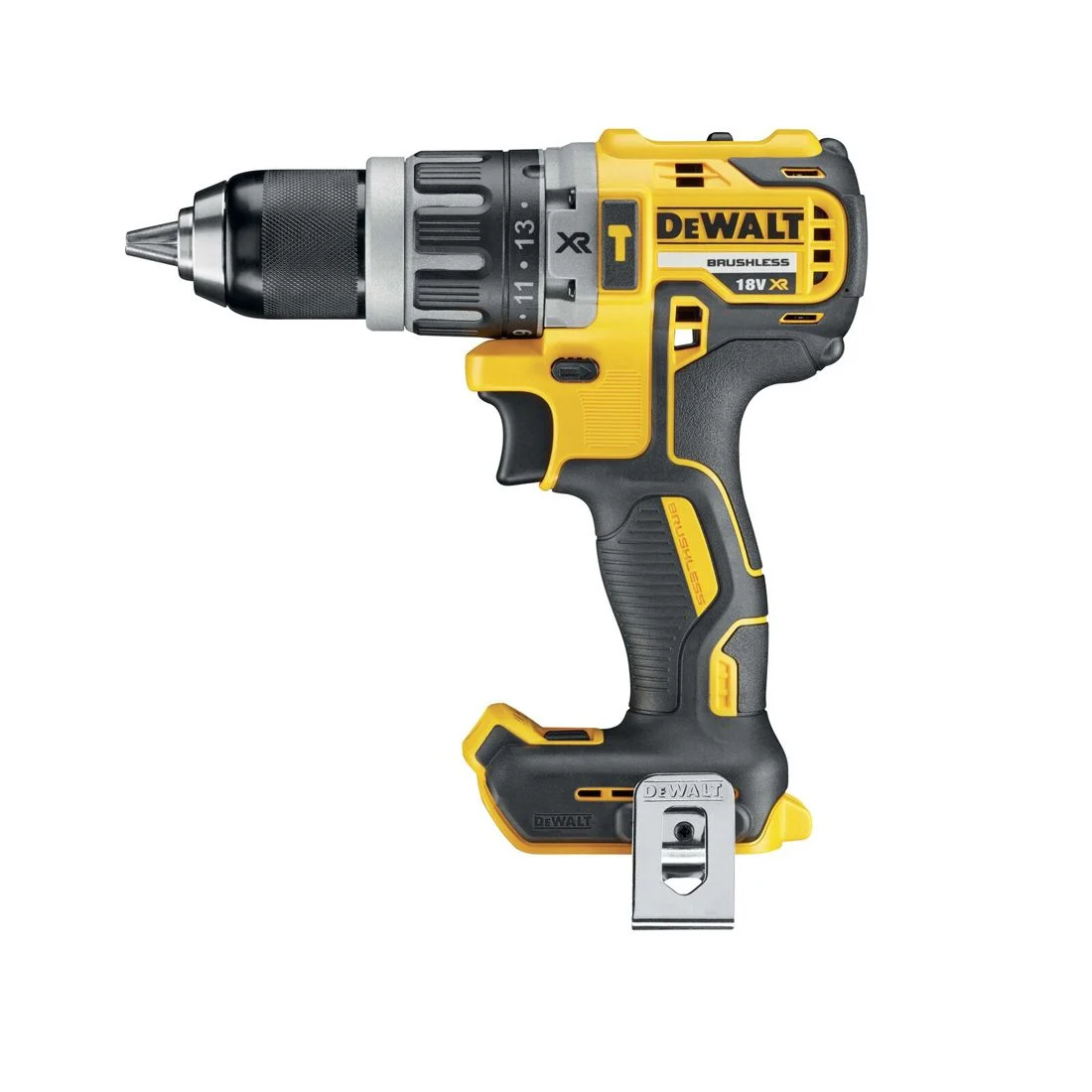

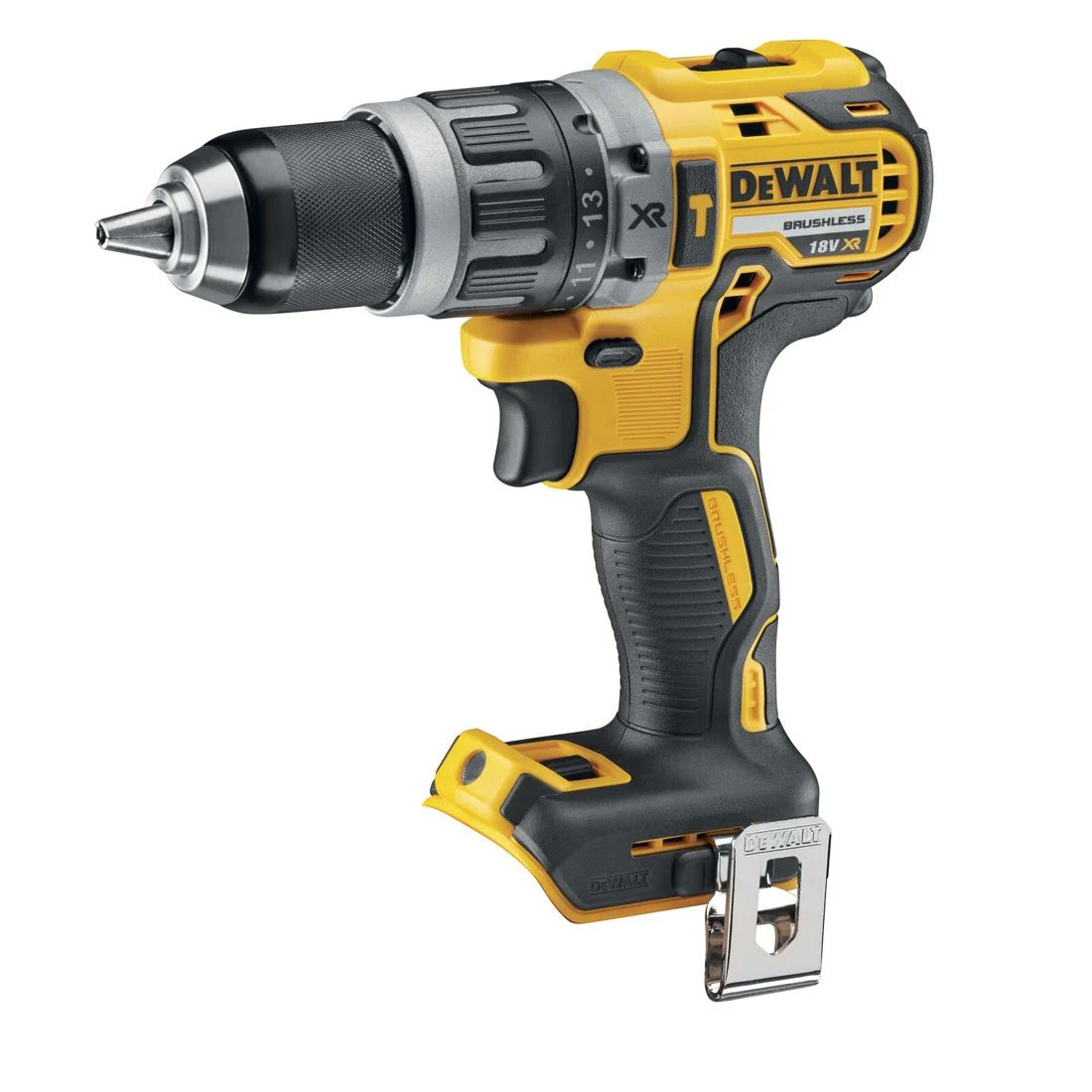

DeWalt DCD796N 18v XR Brushless Combi Drill Body Only
The DeWalt DCD796N is an 18v XR brushless compact combi drill designed for professional and demanding DIY use. Powered by a brushless motor for superior efficiency and longer life, it delivers up to 70 Nm of hard-torque and features a 15-position adjustable clutch for precise screw-driving control. Compact and ergonomic (approx. 190 mm length, ~1.3 kg body only), with a rubber-overmould grip, built-in 3-position LED work light and belt-hook, it’s ideal for tight spaces and extended use.
Supplied body only. Batteries & chargers are sold separately.
FEATURES
- Brushless Motor Technology for excellent efficiency
- Ultra compact, lightweight design allows use in confined spaces
- Two speed all metal transmission for increased runtime and longer tool life
- Drill Driver and Hammer feature for multiple applications
- 15 position adjustable torque control for consistent screw driving into a variety of materials
- Intelligent trigger design allows for total control of application
- Improved ergonomic design with rubber grip over mould improving users comfort
- Improved air flow to the motor for cooler electronics and incrreased power

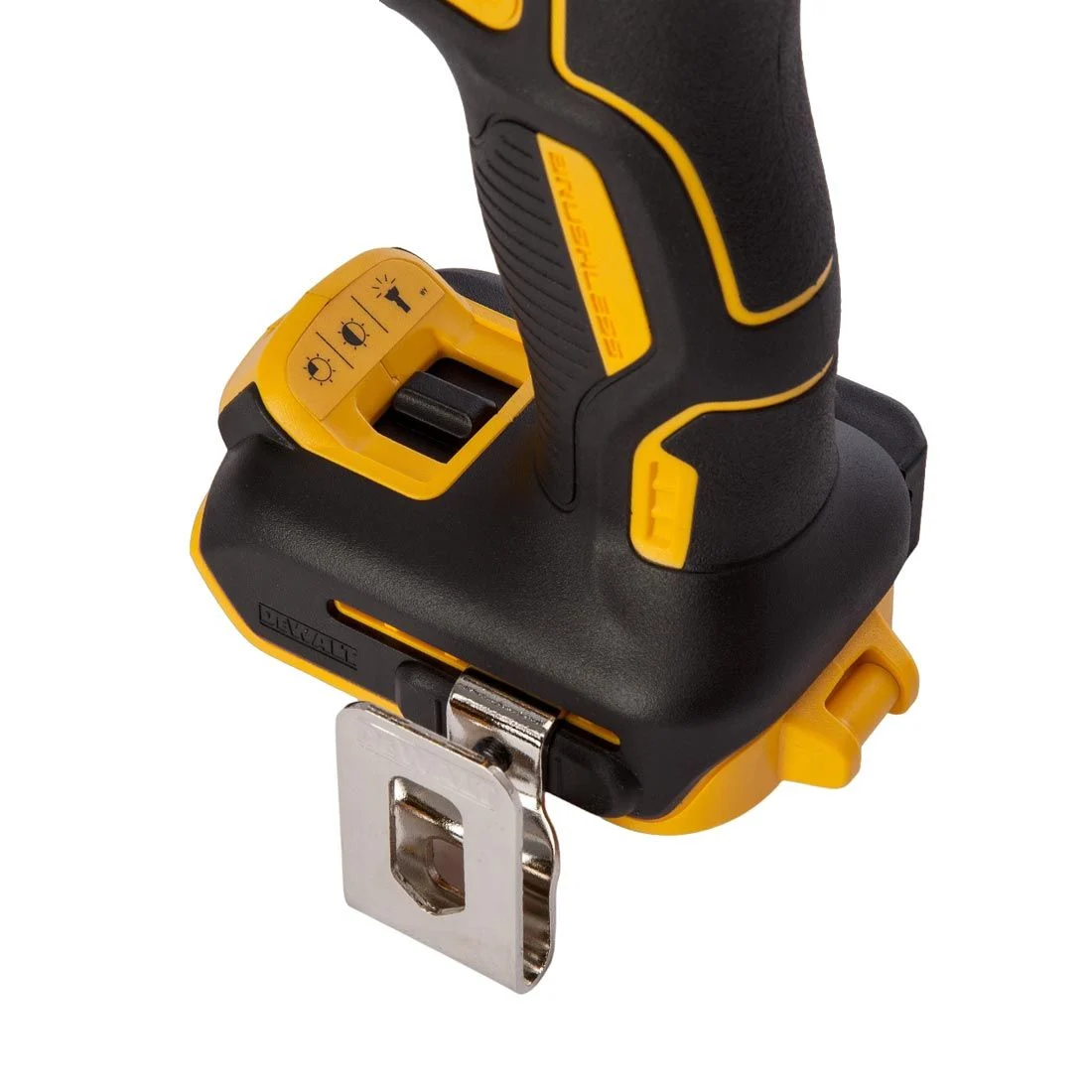

- 3 position super bright LED light
- Li-Ion battery packs allows for superior insertion and removal with state of charge indicator
SPECIFICATION
- Voltage: 18v
- Power Output (W): 460
- Soft Application Max Torque (Nm): 27
- Hard Application Max Torque (Nm): 70
- Torque Settings: 15 + Drill
- Brake Type: Electric
- No. of Gears: 2
- LED Job Light: Yes / Delay / Base-mounted
- Battery Capacity Indicator: No
- Battery Compatibility: 18v Lithium-Ion (XR)
- Rotation: Forward / Reverse
- Variable Speed Control Trigger: Yes
- No Load Speed (RPM) High: 0-2000
- No Load Speed (RPM) Med: N/A
- No Load Speed (RPM) Low: 0-550
- Chuck Type: 3-Jaw / Single Sleeve Keyless / All Metal
- Chuck Capacity (mm): 1.5-13.0
- Drill Capacity: Concrete (mm): 13
- Drill Capacity: Metal (mm): 13
- Drill Capacity: Wood (mm): 40
- Impact Rate (BPM) High: 0-34000
- Impact Rate (BPM) Med: N/A
- Impact Rate (BPM) Low: 0-9350
- Overall Length (mm): 190
- Net Weight (Approx. Kg) with 1.5/2Ah Batt: 1.6
- Net Weight (Approx. Kg) with 3/4/5Ah Batt: 1.8
- Brushless Motor: Yes
NOISE & VIBRATION
- Sound Pressure Level (LpA): 89 dB (A)
- Sound Power Level (LWA): 100 dB (A)
- Sound Uncertainty (K): 3 dB (A)
- Drilling Concrete Vibration Emission (ah): 11.5 m/s²
- Drilling Concrete Vibration Uncertainty (K): 1.6 m/s²
- Drilling Metal Vibration Emission (ah): <2.5 m/s²
- Drilling Metal Vibration Uncertainty (K): 1.5 m/s²
What’s in the box
- 1x DCD796 Combi Drill Body Only
- 1x Belt Clip
